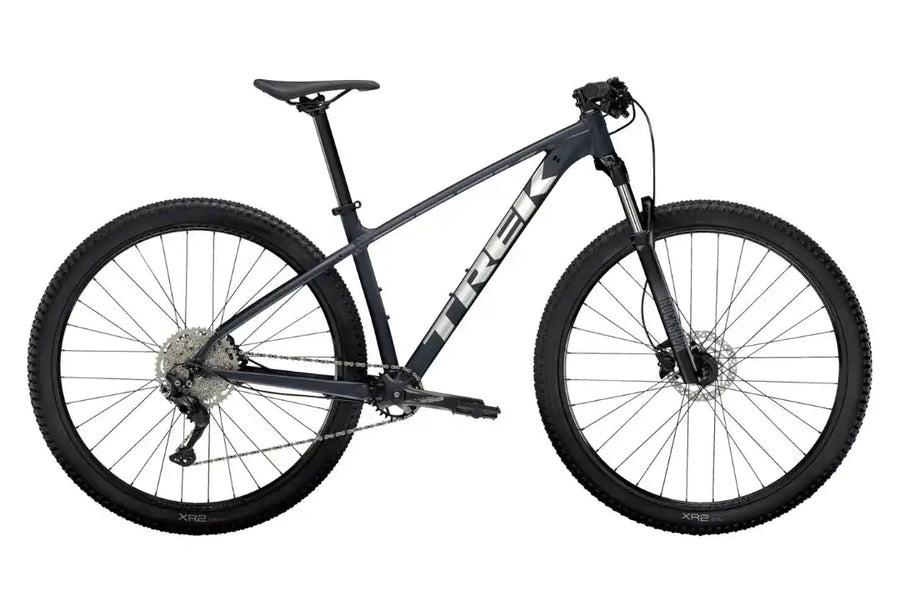

TREK 2023 MARLIN 7 GEN 2 Mountain Bike - MATTE NAUTICAL NAVY/MATTE ANTHRACITE

★★★★★

4.9 (284 reviews)

$553.50 $692.00 Save $138.50

Free shipping
on orders over $500

14-day returns
Hassle-free

Secure checkout
SSL encrypted

Marlin 7 is where race-worthy mountain bike. The smooth, lightweight RockShox fork and upgraded parts make this model the best choice for new riders who want a fast cross-country hardtail that will hold its own against our higher-end race bikes.

Specifications:

Frameset
*Frame	Size: XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Frame	Size: M , ML , L , XL , XXL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
*Fork	Size: XS RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset, 100mm QR, 80mm travel
	Size: XS RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
	Size: S RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
	Size: M , ML , L , XL , XXL RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Wheels
Hub front	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear	152x5mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
Spokes	14g stainless steel
*Tire	Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
*Tire	Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Max tire size	Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer
Drivetrain
Shifter	Shimano Deore M4100, 10 speed
Rear derailleur	Shimano Deore M5120, long cage
*Crank	Size: XS , S , M FSA Alpha Drive, 28T steel ring, 55mm chainline, 170mm length
*Crank	Size: ML , L , XL , XXL FSA Alpha Drive, 28T steel ring, 55mm chainline, 175mm length
Bottom bracket	FSA, 73mm, threaded cartridge, 122.5mm spindle
Cassette	Shimano Deore M4100, 11-46, 10 speed
Chain	KMC X10, 10 speed
Pedal	VP-536 nylon platform
Max chainring size	1x/2x: 34T, 3x: 42T
Components
Saddle	Bontrager Arvada, steel rails, 138mm width
*Seatpost	Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length
*Seatpost	Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar	Size: XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width
*Handlebar	Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
	Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
	Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset	Semi-integrated, 1-1/8''
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160mm
*Brake rotor	Size: L , XL , XXL Shimano RT26, 6-bolt,180mm
Brake Set	Shimano MT200 hydraulic disc
Weight
Weight	M - 13.47 kg / 29.7 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
