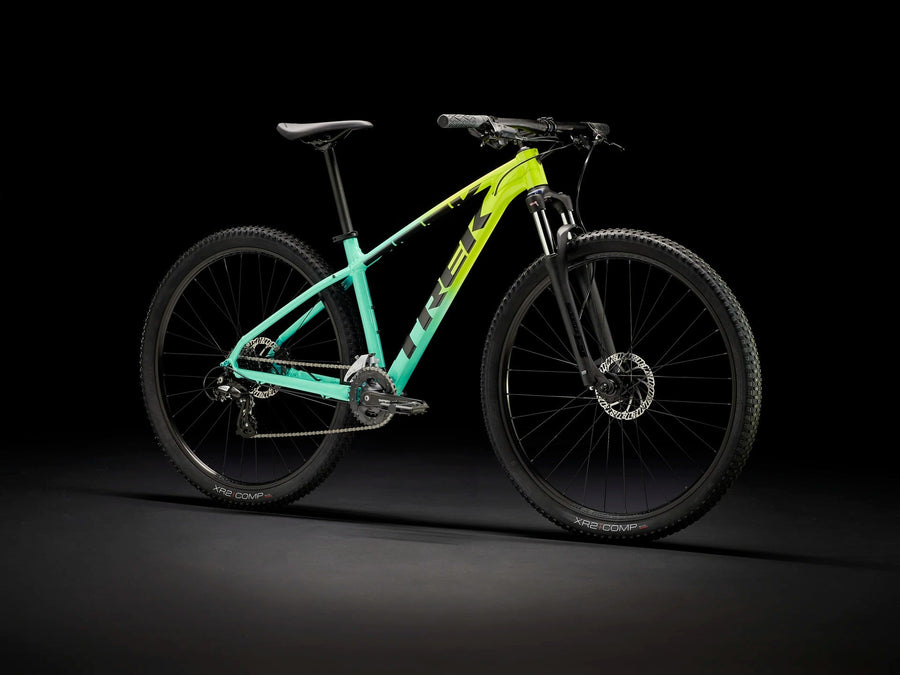

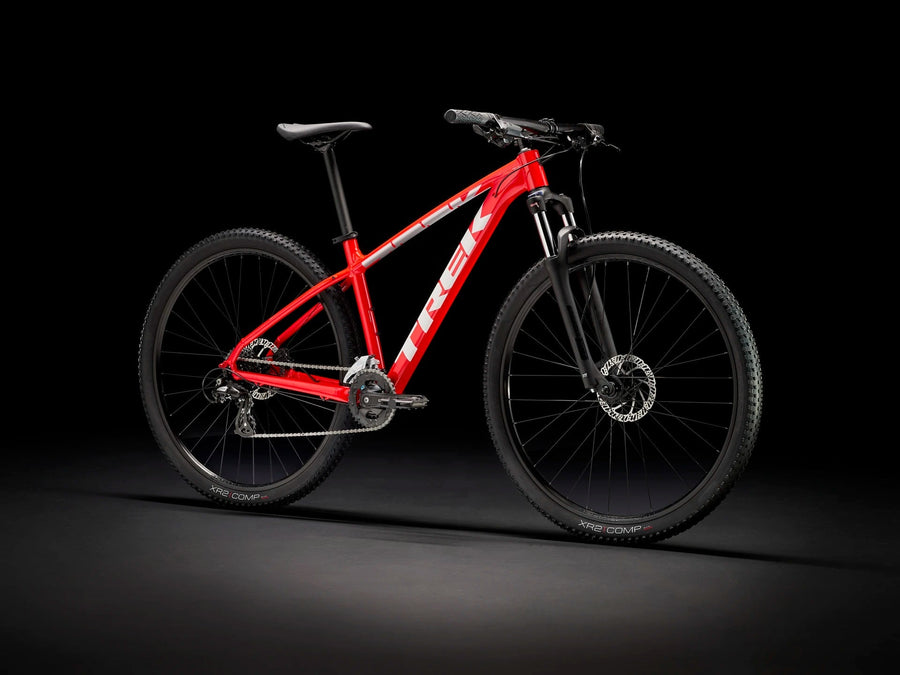

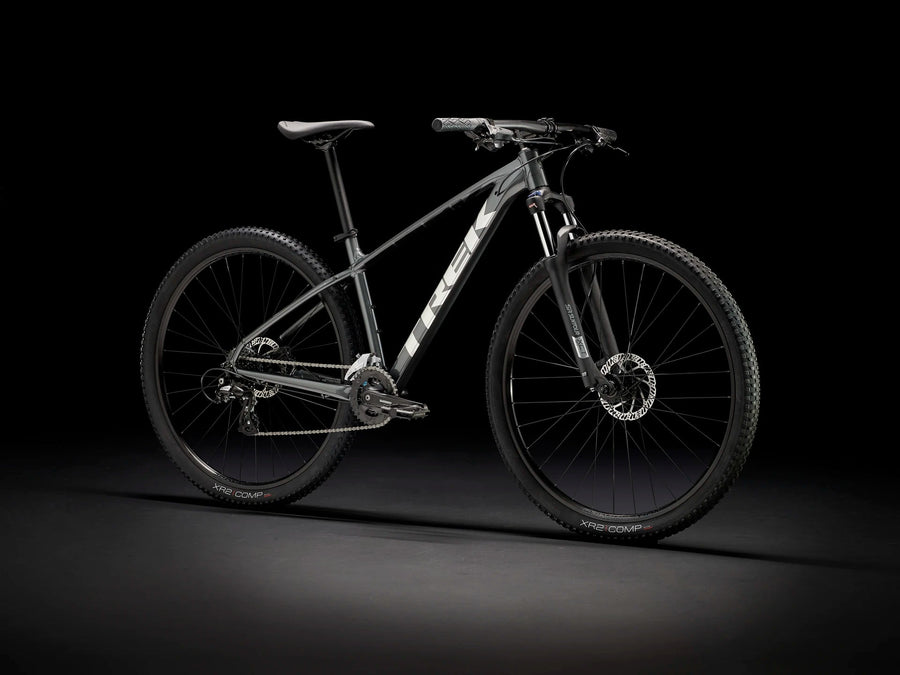

TREK 2023 MARLIN 5 GEN 2 front shock absorber disc brake/Marlin 5 Gen 2

★★★★★

4.9 (284 reviews)

$354.82 $444.00 Save $89.18

Free shipping
on orders over $500

14-day returns
Hassle-free

Secure checkout
SSL encrypted

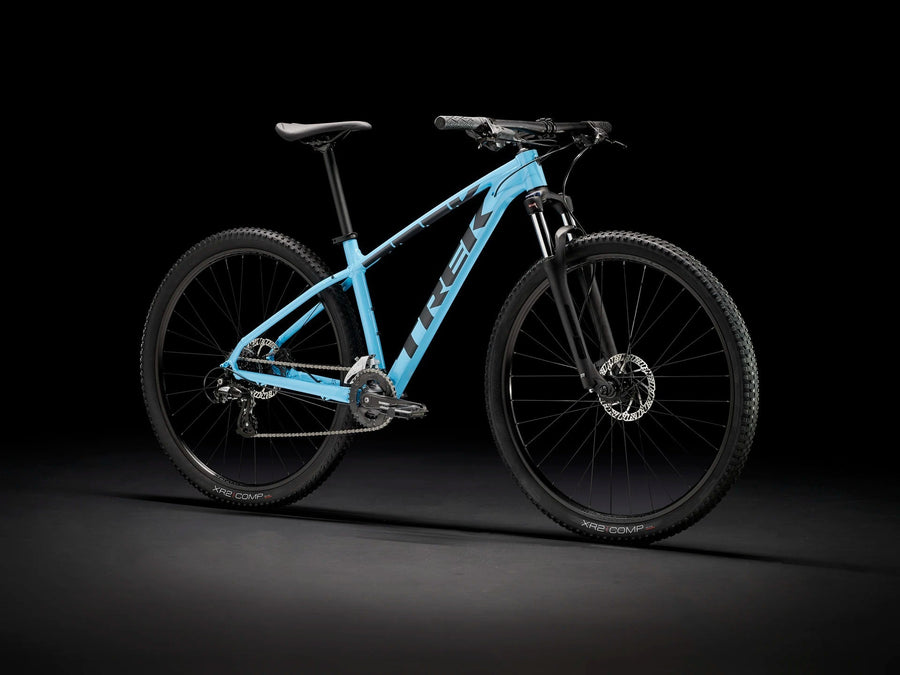

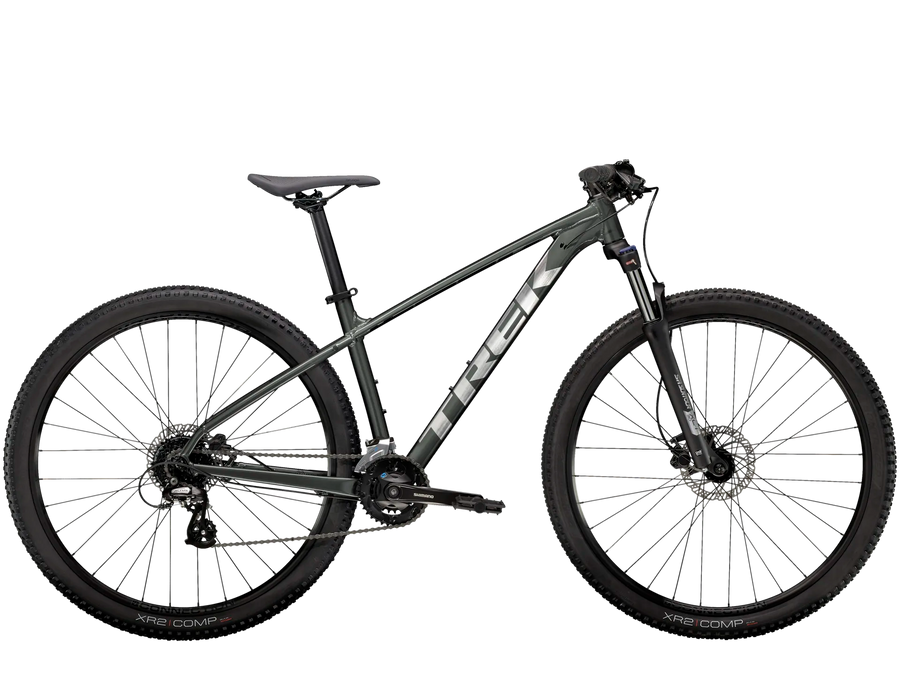

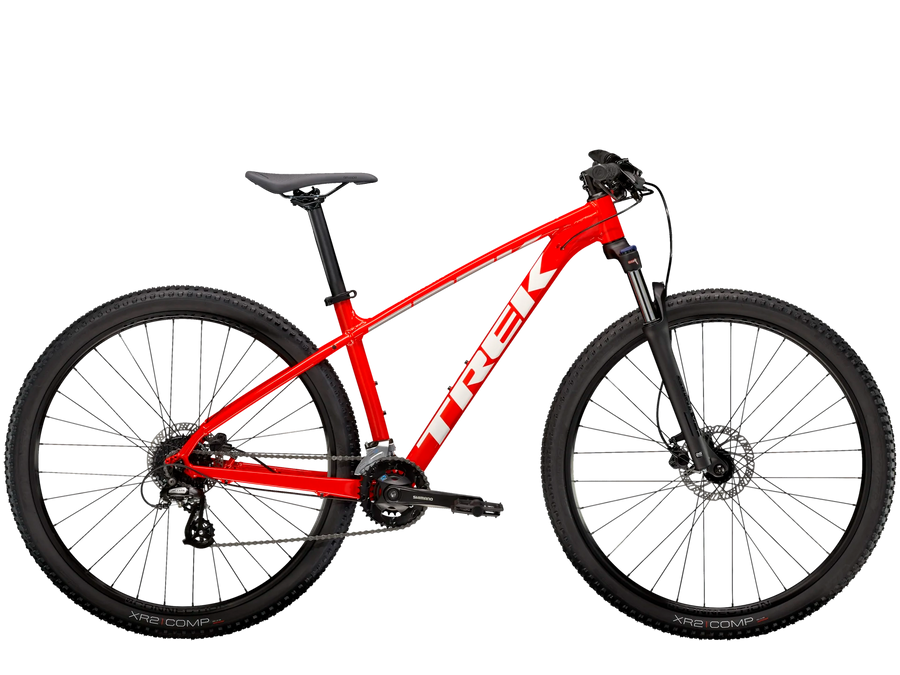

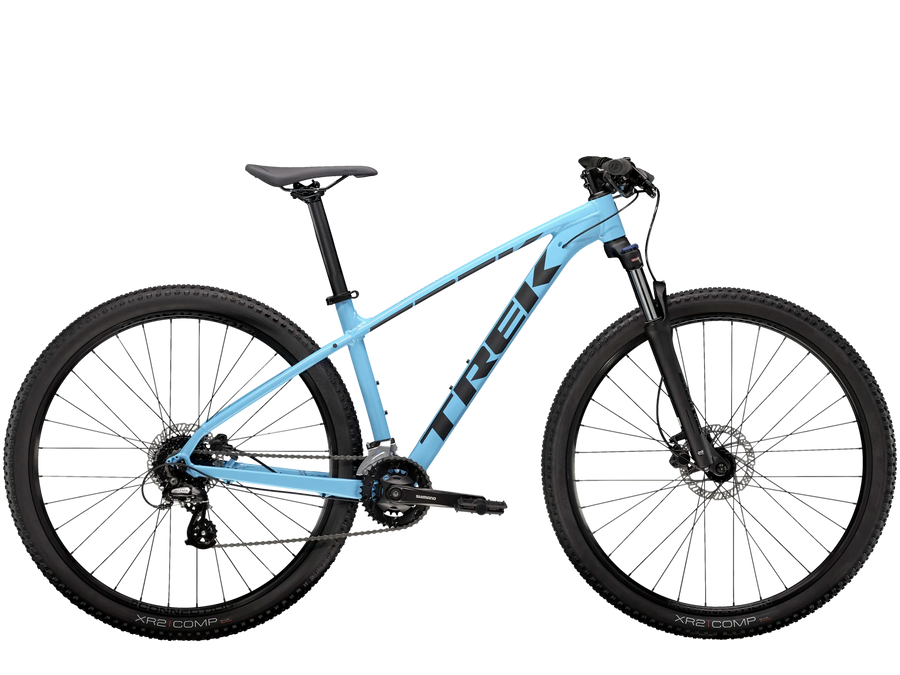

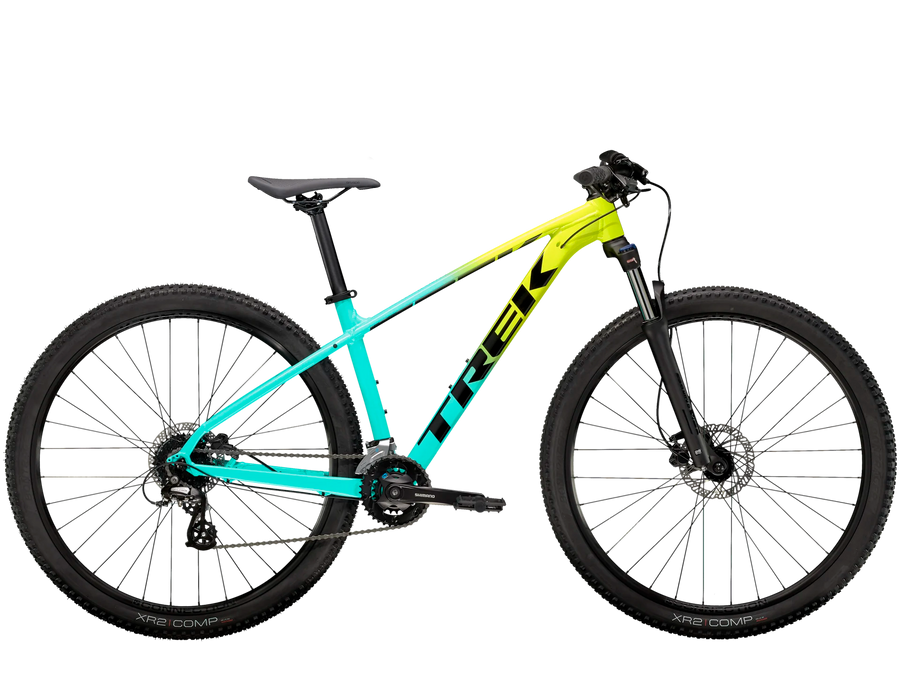

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Specifications:

*frame	size: XXS, XS, S Alpha Silver Aluminum, Curved Top Tube, Internal Cable Routing, Chainstay Disc Brake Mount, Rack and Bracket Mount, 135x5mm QR
*frame	size: M, ML, L, XL, XXL Alpha Silver Aluminum, Internal Cable Routing, Chainstay Disc Brake Mount, Rack and Bracket Mount, 135x5mm QR

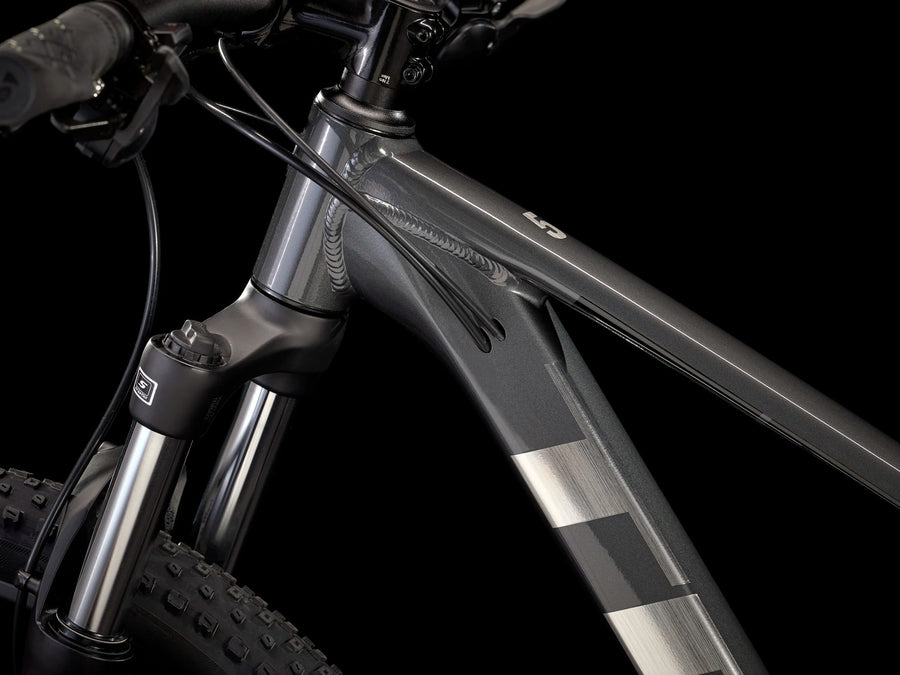

*cross	size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26'' wheels
	size: XXS SR Suntour XCT 30, coil spring, preload, hydraulic locking, 26-inch wheels 42mm offset, 100mm QR, 100mm travel
	size: XS SR Suntour XCT 30, coil spring, preload, hydraulic locking, 27.5-inch wheels 42mm offset, 100mm QR, 80mm travel
	size: S SR Suntour XCT 30, coil spring, preload, hydraulic locking, 27.5-inch wheels 42mm offset, 100mm QR, 100mm travel
	size: M, ML, L, XL, XXL SR Suntour XCT 30, coil spring, preload, hydraulic locking, 29-inch wheels 46mm offset, 100mm QR, 100mm travel
Maximum compatible fork stroke	100 mm (XS and S: 490 mm from shaft to crown, Medium and above: 509 mm from shaft to crown)

wheel

front part of wheel hub	Formula DC-20, alloy, 6 bolt, 5x100mm QR
rear of hub	Formula DC-22, alloy, 6 bolt, Shimano 8/9/10 freehub, 135x5mm QR
skewer rear	152x5mm quick release
*rim	size: XS,S Bontrager Connection, double wall, 32 holes, 20 mm wide, Schrader valve, black
*rim	size: M, ML, L, XL, XXL Bontrager connection, double wall, 32 holes, 20 mm wide, Schrader valve

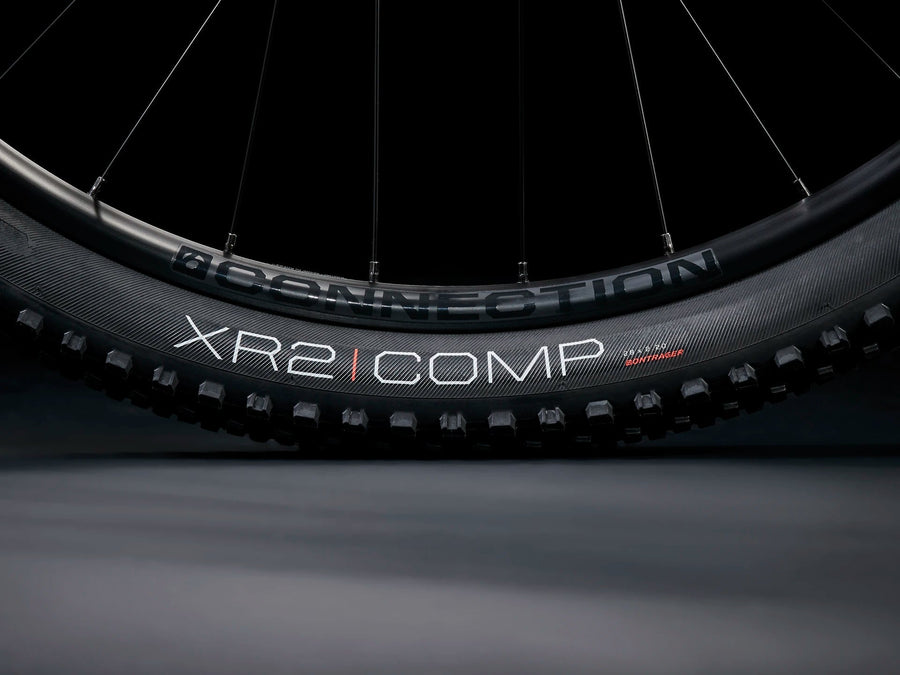

*fetal	size: XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
	size: XS,S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
	size: M, ML, L, XL, XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Maximum tire size	Frame: 29x2.20" (XS and S: 27.5x2.40"), Fork: See manufacturer

Transmission system

gear lever	Shimano Altus M315, 8-speed
front derailleur	Shimano Altus M315, 34.9mm clamp, top swing, double pull

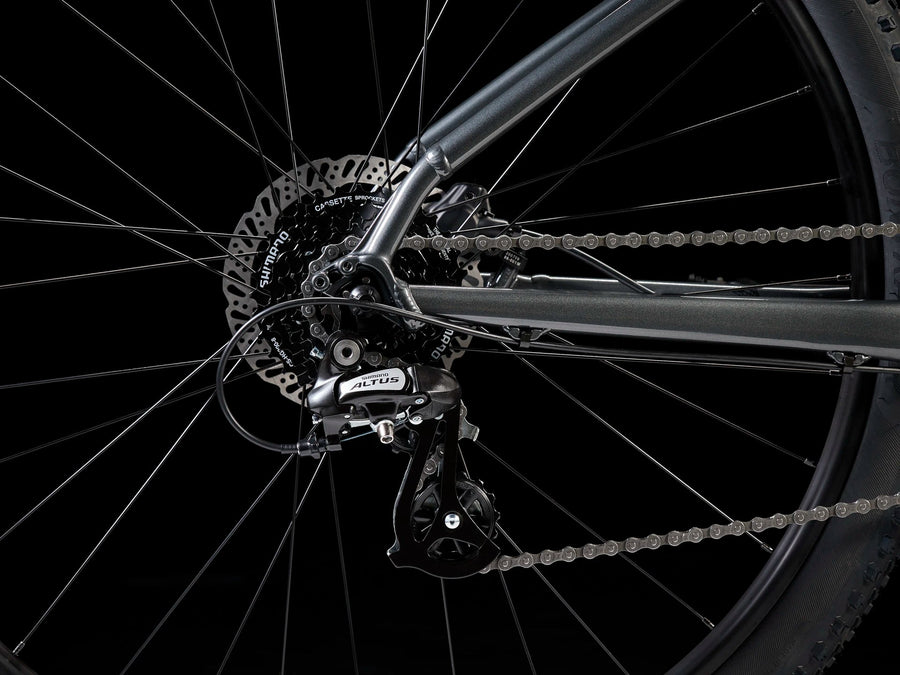

rear derailleur	Shimano Altus M310
*crank	size: XXS Prowheel TM-CY10, 36/22, length 160mm
	size: XS,S,M Shimano M315, 36/22, length 170mm
	size: ML,L,XL,XXL Shimano M315, 36/22, length 175mm
bottom bracket	Sealed cartridge, 73mm
a magnetic tape	Shimano HG200, 12-32, 8-speed
chain	KMC Z8.3, 8 speed
Maximum link size	1x/2x: 34T, 3x: 42T

Element

saddle	Bontrager Arvada, steel rail, 138 mm wide
*Seat post	size: XXS Bontrager alloy, 31.6mm, offset 12mm, length 300mm
	size: XS,S,M Bontrager alloy, 31.6mm, offset 12mm, length 330mm
	size: ML,L,XL,XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*handlebar	size: XXS,XS Bontrager alloy, 31.8mm, height 5mm, width 690mm
*handlebar	size: S, M, ML, L, XL, XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width
*Dry	size: XXS Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 35mm Length
	size: XS Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 50mm Length
	size: S Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 60mm Length
	size: M Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 70mm Length
	size: ML,L Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 80mm Length
	size: XL, XXL Bontrager Alloy, 31.8mm, Blendr Compatible, 7 Degrees, 90mm Length
earphone	Semi-integrated, 1-1/8''

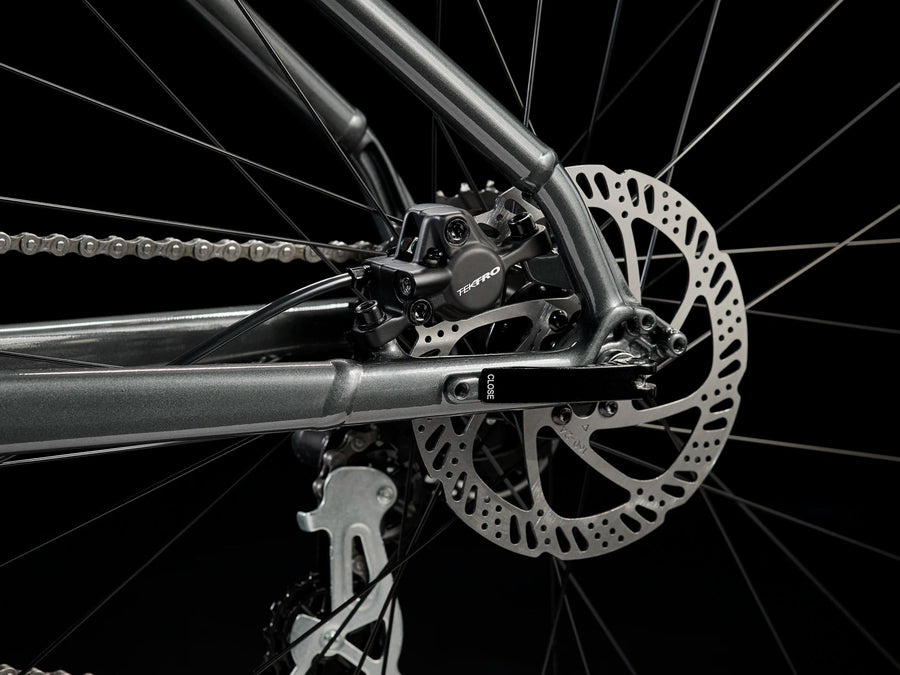

brake	Tektro HD-M275 Hydraulic Disc
brake group	Tektro HD-M275 hydraulic disc, 160mm rotor
